Saphyr®

Resolve large-scale structural variations missed by next-generation sequencing (NGS) systems

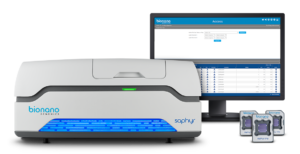

Saphyr®, Bionano’s third-generation optical mapping solution, provides what’s missing in genome research – rapid, high-throughput, long-range genome mapping with unmatched structural variation discovery capabilities.

It detects and analyzes large structural variations with exceptional sensitivity and specificity to reveal the true structure of any genome. Saphyr’s breakthrough speed and throughput combined with unmatched structural variation sensitivity make it the ideal solution for human and translational research applications.

Saphyr is based on Bionano’s genome mapping, which is the combination of proprietary NanoChannel arrays with optical genome mapping to image extremely long, high molecular weight DNA in its native state. This technology allows for unparalleled structural variation sensitivity, improved genome assembly contiguity up to 1000 times that of short-read sequencing alone and the accuracy to correct sequencing-based assembly errors.

Resolve large structural variations missed by next-generation sequencing (NGS) systems. Large structural variations are responsible for many diseases and conditions, including cancers and developmental disorders. Saphyr detects structural variations ranging from 500 bp to megabase pairs in length and offers assembly and discovery algorithms that far outperform sequencing-based technologies in sensitivity.

  • 99% sensitivity for homozygous insertions/deletions larger than 500 base pairs
  • 95% sensitivity for heterozygous insertions/deletions larger than 500 base pairs
  • 95% sensitivity for balanced and unbalanced translocations larger than 50,000 base pairs
  • 99% sensitivity for inversions larger than 30,000 base pairs
  • 97% sensitivity for duplications larger than 30,000 base pairs
  • 97% sensitivity for copy number variants larger than 500,000 base pairs

Saphyr provides this performance typically with a false positive rate of less than 2%. Saphyr also calls repeats and complex rearrangements.

  • Undiagnosed genetic disorders – close the diagnosis gap by detecting large structural events missed by NGS
  • Gene discovery and therapy development – identify genes of interest, their locations and how structural variations impact them to inform effective therapy development
  • Cancer – detect and visualize large rearrangements occurring in cancer genomes
  • Cell line studies – monitor genomic integrity of cell lines and off-target effects of genetic engineering
  • Selective breeding – identify areas of biological interest for achieving desirable traits in livestock or crops
  • Evolutionary biology – see the complete picture of how genomes have evolved and been reorganized
  • Reference genome assembly – perform de novo assembly and correct assemblies generated by sequencing-based systems
